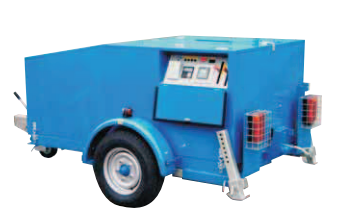

A range of Trailer mounted Cable Pulling Winches required for the installation of Power Cables where high pulling tensions are required. All of the units are designed with the operator in mind. Simple in operation and robustly engineered, these units are fitted with heavy duty diesel engines powering hydraulic transmission for smooth controlled pulling, and are fitted with a console mounted line tension indicator so that at all times the operator has a visual display of the pulling force applied. All of the Winches can be quickly pre-set so they do not exceed the required pulling tension.
A range of Trailer mounted Cable Pulling Winches required for the installation of Power Cables where high pulling tensions are required. All of the units are designed with the operator in mind. Simple in operation and robustly engineered, these units are fitted with heavy duty diesel engines powering hydraulic transmission for smooth controlled pulling, and are fitted with a console mounted line tension indicator so that at all times the operator has a visual display of the pulling force applied. All of the Winches can be quickly pre-set so they do not exceed the required pulling tension.
Power Unit: Water cooled Diesel engine. Rated at 17.75Kw.
Main Drive System: Twin Grooved Capstan.
Rewind Drum Drive: Hydraulic driven for rope tension.
Cable Pay Out: Via hydraulic system - powered.
Pull Load Indicator: Electronic display system.
Oil Cooler: Fitted with thermostat fan.
Rope Capacity:
750 mtrs. x 10mm dia rope. (Europe & UK)
1000mtrs. x 10mm dia rope (Export)
TCW3000
Rope Pull/Speed: No Load/Payout - 50mts/min approx.
3.0 tonne 12 mtr/min approx.
Rope Layering: Automatic spooling via scrolled shaft layering arm.
TCW4000
Rope Pull/Speed: No Load/Payout - 25mts/min approx.
4.0 tonne 10 mtr/min approx.
